ANEN 600 large current industrial connector

FOB Reference Price:Get Latest Price
US $90.16-95.16 / Sets | 2 Set/Sets the sets including housing and terminal (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anen
Model Number:
IC600 Connector
Type:
Plug with Socket
Grounding:
Standard Grounding
Rated Voltage:
1000v
Rated Current:
300A
Application:
logistics communication, power-driver tools , UPS system Electric
color:
black,yellow.red.blue
contact material:
copper,plate with silver
rated voltage (Volts):
1000V
Rated current(Amperes):
600A
contact barrel wire size (AWG):
150-240m㎡
Flammability:
UL94V-0
average Connection (N):
200N
insulation material:
PA
Supply Ability
Supply Ability:
1000 Set/Sets per Day
Packaging & Delivery
Packaging Details
export packaging
Port
shenzhen
Lead Time :
15 day

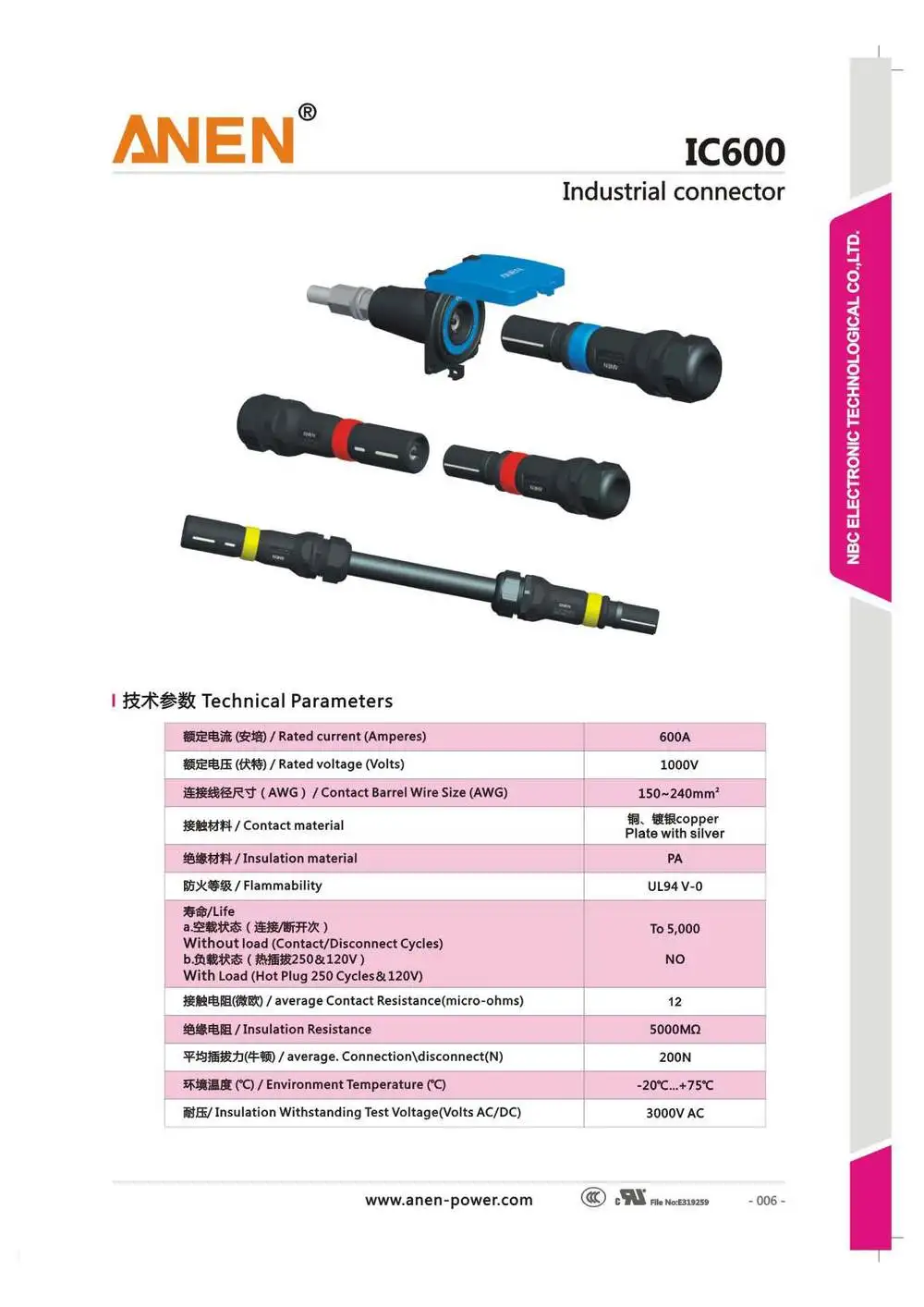

ANEN 600 large current industrial connector


Specifications

Place of origin: China

Type: Adapter/connector

Brand: Anen

Model Number: IC600

Color: Red/Green/Yellow/Blue/Black

Rated Voltage: 1000V

Rated Current: 300/600/1000A

Contact Material: Silver Plated Copper

Size Wire:50-240mm²

Flammability: UL94V-0

Name: Anen Industrial Round Connector

Packaging & Delivery

Packaging Details:

8 set/carton

Delivery Detail:

Shipped in 7 days after payment



Product Description

Anen IC Series connectors are specially formed, resilient strips of copper alloy which are silver or gold-plated according to their application and are float mounted in a groove. By its constant spring pressure the connector maintains continuous contact with the contact surface, resulting in a low and constant contact resistance.



This technology of the connector allows us to meet a very broad range of requirements and to find solutions to the most severe constraints, including electrical (up to several ka), thermal (up to 350 ) and mechanical, with contact durability of up to 1 million mating cycles.

we are specialized in the design of custom solutions.



Advantages of Anen industrial round connector

-Minimal voltage drop

-High current-carry capacity

-Minimal power loss

-Minimal contact resistance

-High durability contacts withstand up to 1 million mating cycles

-Operating temperatures up to 350 degree, Higher temperatures permitted for short periods

-High resistance to vibration, shock and impact

-Low maintenance costs

-Round, flat or spherical types

-Very good corrosion resistanc





Product Use

Used in standby power units, test stands, switchgears, construction machinery as well as on- and off- shore applications with harsh environmental conditions.



Application with standby power supply unit, generating set, test equipment, complete equipment, mobile power supply vehicle, UPS power supply vehicle, power battery charging and electric vehicle charging pile .



Company Information

NBC electronic technologic Co.,Ltd, founded in the beginning of the 21st century, is a comprehensive high and new technology enterprise that specializing in designing, developing, manufacturing and marketing of high power connectors, which mainly engaged in various types of Anen Power Connector and cable assemblies.



NBC has been concentrated on the field of power connector nearly 10 years that has established a set of perfect product and service system with the advanced technical equipment and high qualified staff team. in order to meet customers' demand better, we adhere to the way of open cooperation. and to improve customer value through continuous innovation of technology, product, solve project and business management, to meet customers' demand by driving development process.



Our product, ISO9001 and ISO14001 certified, are in line with the industry standard in whole, which being widely used in the industry of power, auto, communication, new energy resources, medical treatment etc, with independent intellectual copyright, it have a leading position both at home and abroad.



Packaging & Shipping

1. Payment: USD, 100% T/T in advance. Provided our HSBC registered in Hong Kong.

2. Customers’ pick up by themselves or we arrange the freight prepaid, whatever express, shipping or airline.
