Anen Power Product DC Connector MC4 Solar Waterproof Connector

FOB Reference Price:Get Latest Price
  • 1 - 99 Pieces
    US $0.99
  • >=100 Pieces
    US $0.89
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ANEN
Model Number:
PV 4.0 MC4 Connector
Type:
Adapter
Application:
Power
Gender:
Male And Female MC4 Connector
Product name:
MC4 Connector
Color:
Black
Wire Size:
2.5 - 6.0 Square
IP Grade:
ip67
Test Voltage:
6KV(50Hz, 1min)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
MC4 Connector Standard Packing
Port
SHENZHEN
Lead Time :
3-5 days

Anen Power Product DC Connector MC4 Solar Waterproof Connector



Home>> All Series>>Power Connector>>Solar Power Connector>>DC Connector MC4 Connector







Product Description





ANEN  DC Connector MC4 Features





 >>Simple Assembly; Easy To Use.



 >>Suitable For Different Size Of PV Cable.



>> Waterproof Grade: IP67



>>High Current Carrying Capacity



>> Quality Contact Material: Pure Copper Plated With Silver







ANEN DC Connector MC4  Parameters





Item Value
Rated Current40A
Rated Voltage1000V(IEC/CEI) 600V(UL)
Test   Voltage6KV(50Hz, 1min)
Overvoltage Category/ Pullution DegreeCATⅢ/3
Contact Resistance Of Plug Connectors0.4mΩ
Contact MaterialPlated With Gold
Insulation MaterialPPO+PBT
Locking SystemFull Lock
Degree Of Protection MatedIP67
Degree Of Protection UnmatedIP2X
Satey Class
Flame ClassUL94-V0
Ambient Temperature Range-40 ··· +90 Degree (UL)
Upper Limiting Termperature100

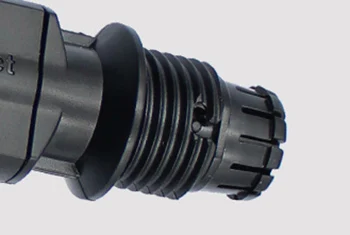

   High Strength Waterproof Ring


    Waterproof and dustproof, waterproof grade: IP67

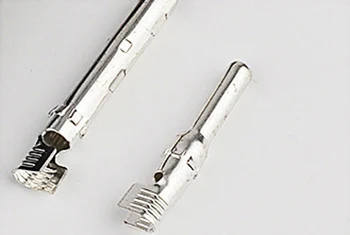

Thickened Copper Core


Copper, Tin-plated, not copper, aluminum-plated
Open type core



   High Strength PPO Material


    The shell is made of high strength PPO material, high heat

    resistance,  wear-resisting, anti-UV

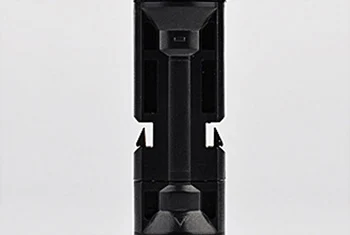

Insulating Element


Guide insulating element, which has the function of guiding and preventing electric shock

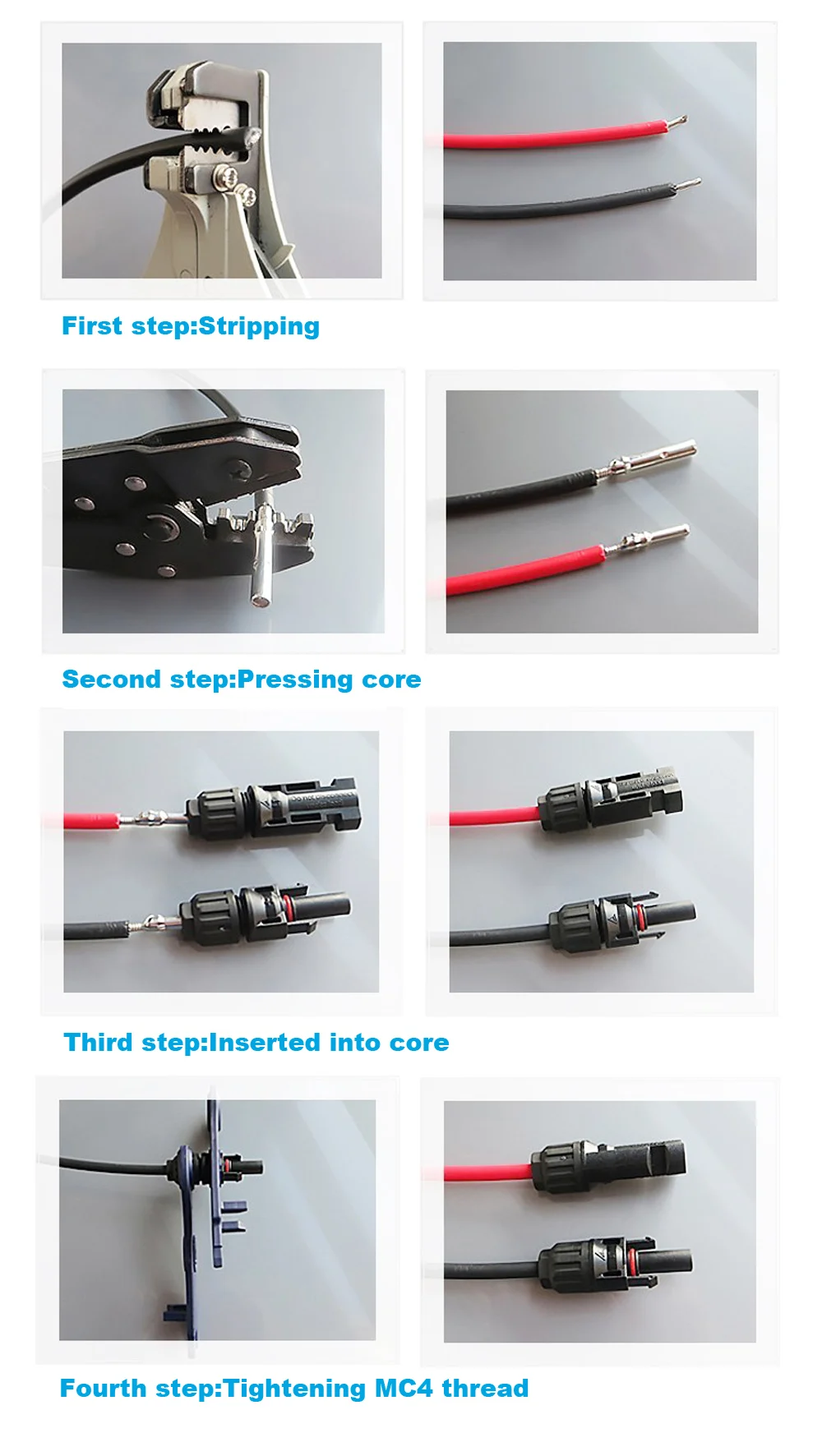

ANEN DC Connector MC4  Installations









Company Information





NBC is short for Dongguan NBC Electronic Technological Co. Ltd. And Anen is our brand name since 2006. While NBC Electronic Technological Company Limited is our offshore company registered in Hong Kong. We are leading manufacturer in the field of various kinds of connectors for decades.
